Save: 1000৳ (-9%)

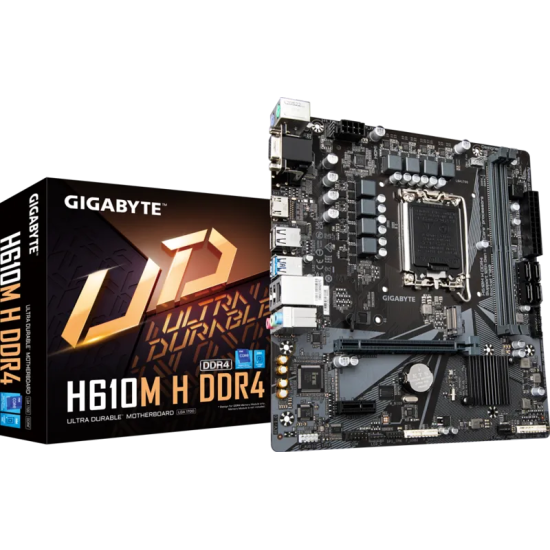

Gigabyte H610M H DDR4 Motherboard
- Special Price: 10,000৳
- Price: 11,000৳
- Stock: In Stock
- Brand: Gigabyte
- Model: H610M H DDR4
Payment Options
Key Features
- Model: H610M H DDR4
- 6+1+1 Hybrid Digital VRM Design
- Supports Intel® Core™ 14th/ 13th /12th processors
- NVMe PCIe 3.0 x4 M.2
- Anti-Sulfur Resistors Design
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Specification
| Basic Information | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Chipset | Intel H610 Express Chipset |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Supported CPU | LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Memory | |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Slots | 2 x DDR DIMM sockets |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| Connectivity | |
| HDMI | 1 x HDMI 2.0 port |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| Connector & Ports | |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
| Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Warranty | 03 Years |
What is the price of Gigabyte H610M H DDR4 Motherboard in Bangladesh 2026?
The latest price of Gigabyte H610M H DDR4 Motherboard in Bangladesh is 10,000৳. You can buy the Gigabyte H610M H DDR4 Motherboard at best price from our website or visit any of our showrooms to make your purchase
